Fully automatic fly ash bricks machine

Fully automatic fly ash cement bricks machine
Main advantage of this machine

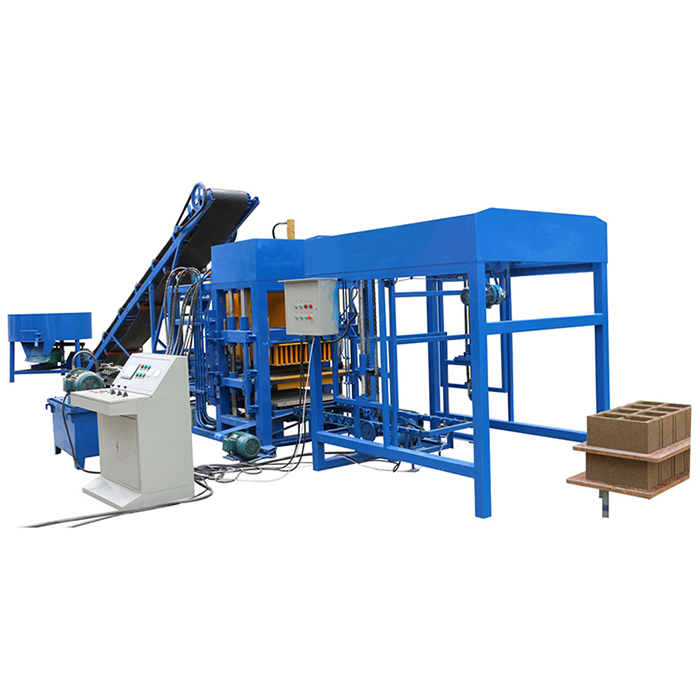

1.  Funtion: QTF4-25 hollow block machine can produce various solid blocks, hollow blocks and pavers by changing moulds.
2.  Moulding technology: Hydraulic system is adopted to this ,fly ash brick making machine, so the blocks produced are of better quaity, larger density and higher strength.

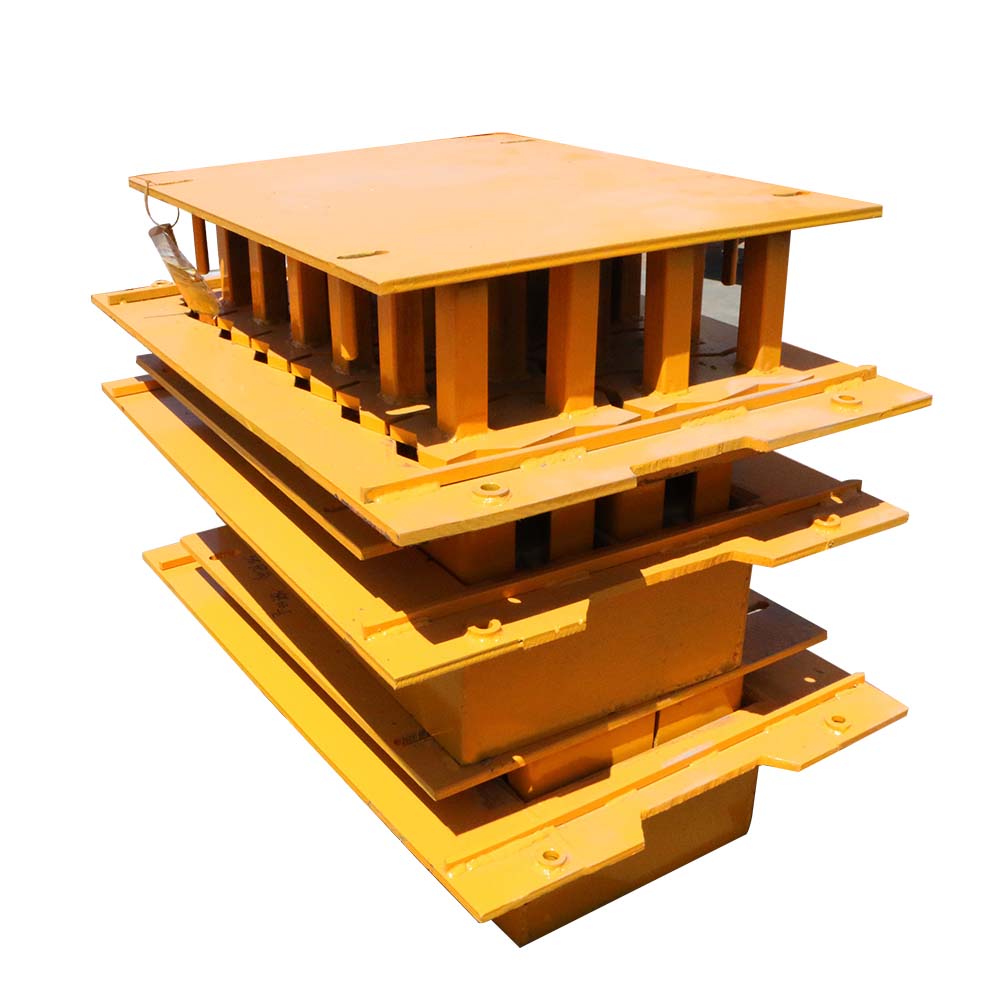

3.  High quality mold: Our molds adopt precise line cutting and carburizing treatment technology to make them more robust and extend mold life. So our mold life is 7-8 times stronger than common steel molds.

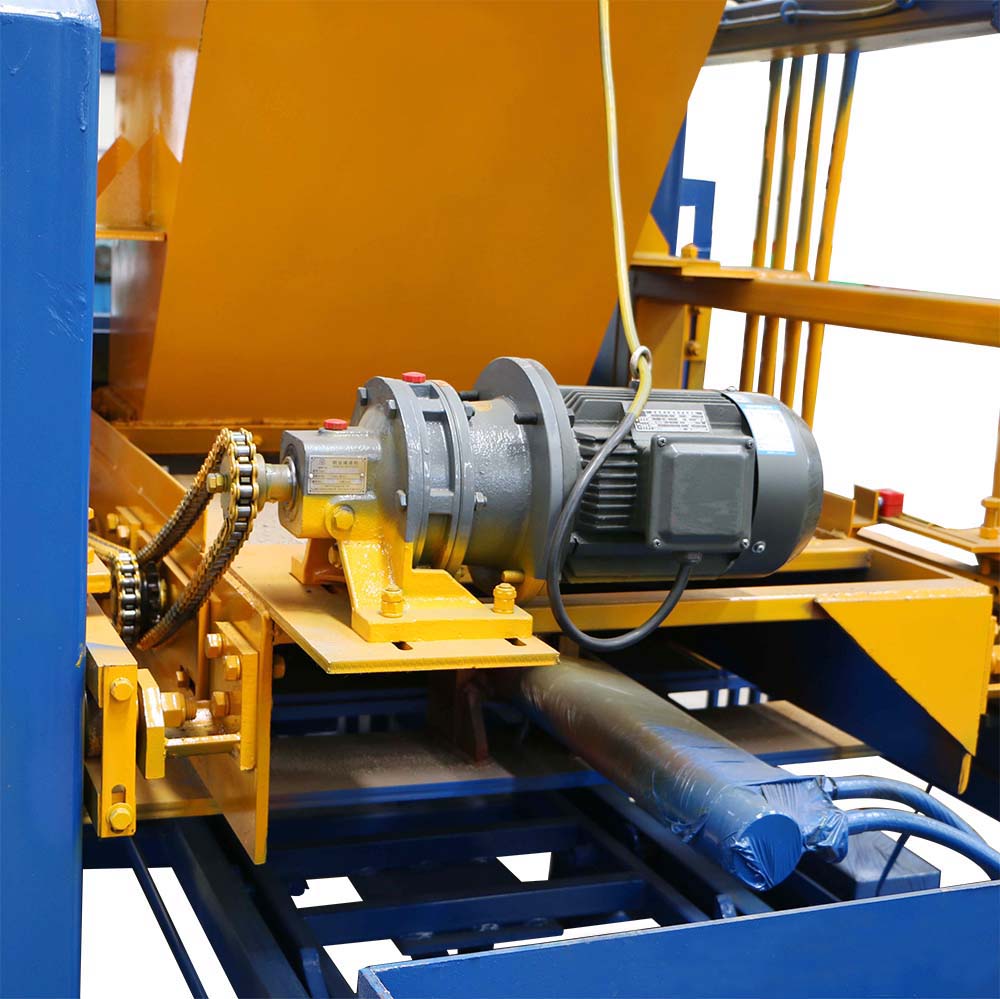

4.  Feeding system: QTF4-25 adopts 360 scatter mixer to scatter material though revolving 360 degree to make the material much more evenly and the blocks produced are of higher quality and density
5.  High quality material: Our machine adopts high strength steel and special strict welding procedure to make the structure of the machine very strong and durable.

Technical Parameter and Production Capacity

Technical Parameters
Dimension 3700x2100x2300mm Power 16.35KW
Mould period 20s Vibration force 35.5KN
Size of the pallet 850x550x30mm Workshop 60㎡
Weight 3.0T Mixer model JQ500
Forming style Hydraulic Pressure Products Hollow, Solid, Paver










Theoretical Production Capacity

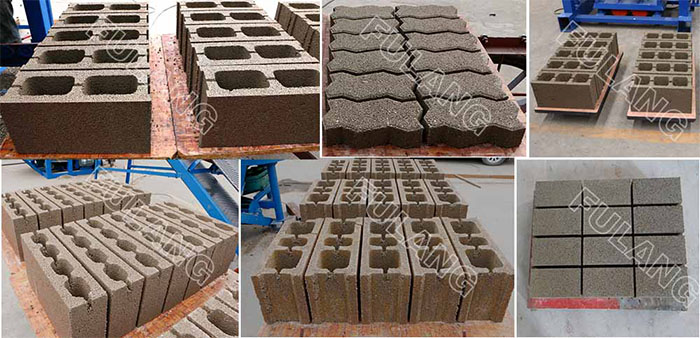

Size(LxWxH) Reference pic Pcs/Mould Pcs/8 hours
400x100x200mm  7  8064
400x150x200mm  5  5760
230*110*70mm  20  23040
500*100*200mm    5  5760
