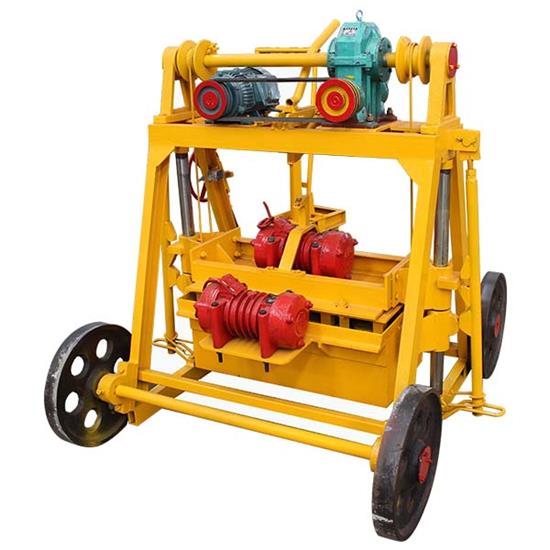

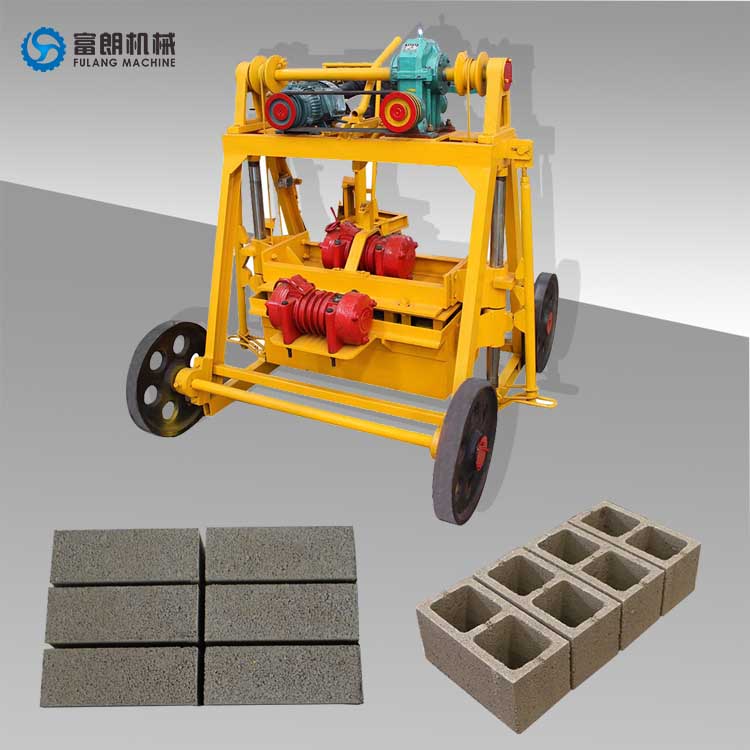

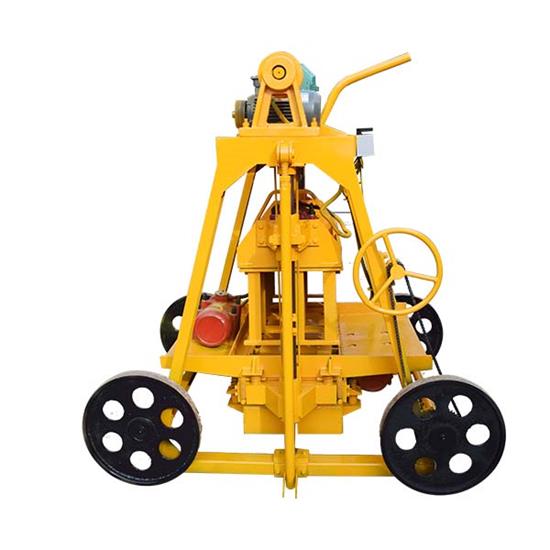

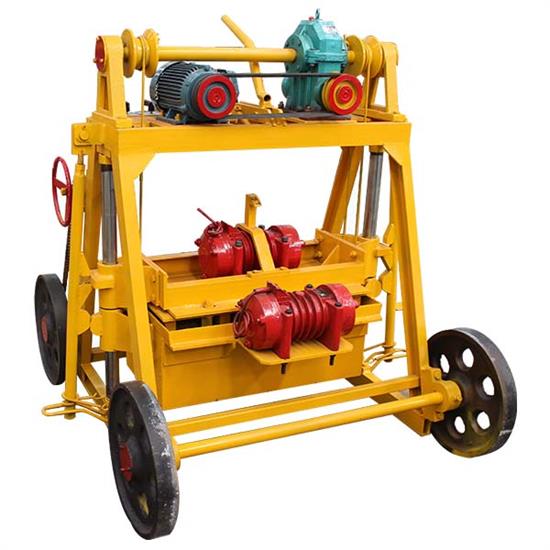

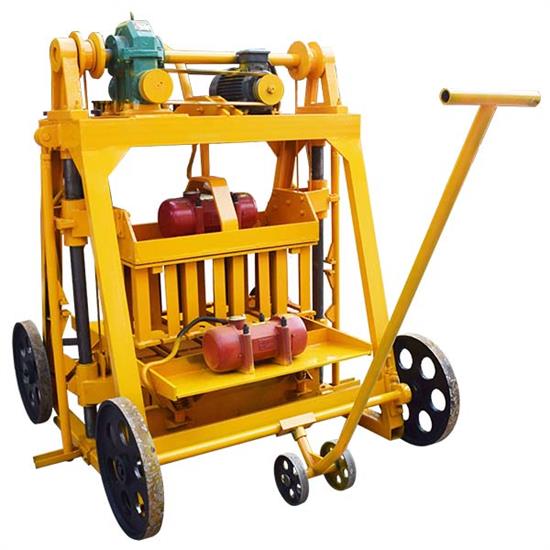

Mobile Concrete Block Machine

Mobile Concrete Block Machine
Main advantage of this machine

1. QTF40-3B manual cement brick making machine mould uses precise wire cutting technology to reduce error and carburizing heat treatment technology to prolong its service life.
2. QTF40-3B bricks laying machine uses vibration molding technology to make bricks ,so the bricks have  better quality,larger density and higher strength.
3. QTF40-3B concrete block plant is easy to operate. And it not need pallet ,so you can move it to wherever you want.
4. The brick making machine can produce many kinds of hollow blocks and solid blocks just by changing the moulds. We can also design block mould according to your requirements.
The production capacity is 3000 pcs/8Hr for 400*200*200mm block

Technical Parameter and Production Capacity

Technical Parameter
Dimension
1350*1300*1650mm
Weight
1100Kgs
Shaping cycle 45s Vibration force 30KN
Host machine power 5.2kw Mixer model JQ350
Capacity 400*200*200mm 3000pcs/8hr The size of the pallet  No need pallet
Mould box size  880*200*200mm Voltage Adapt to local voltage









Production Capacity
Size(L*W*H) Picture Pcs/mould Pcs/mould
400*100*200mm 7   3360
400*100*200mm 5 2400

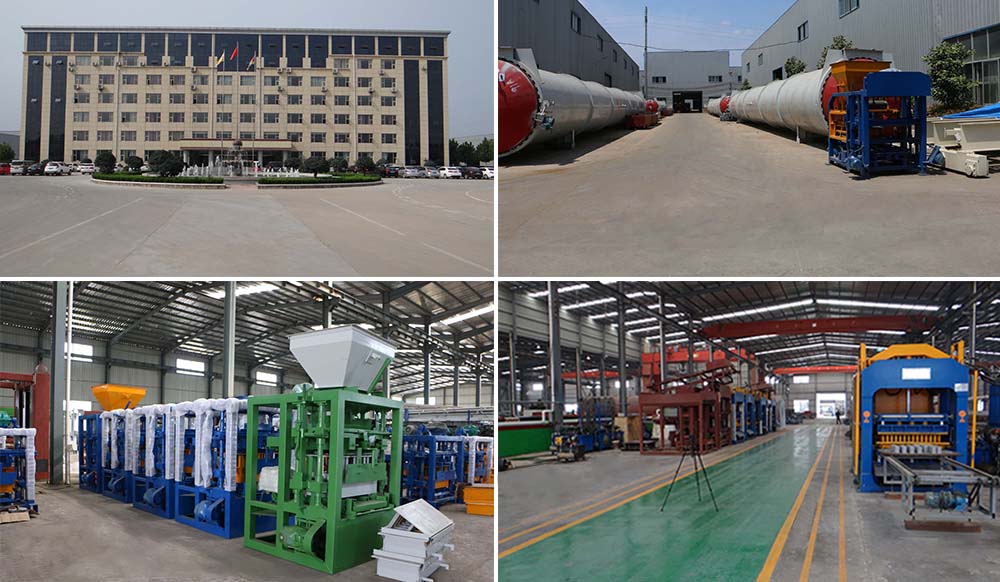

Our Company
