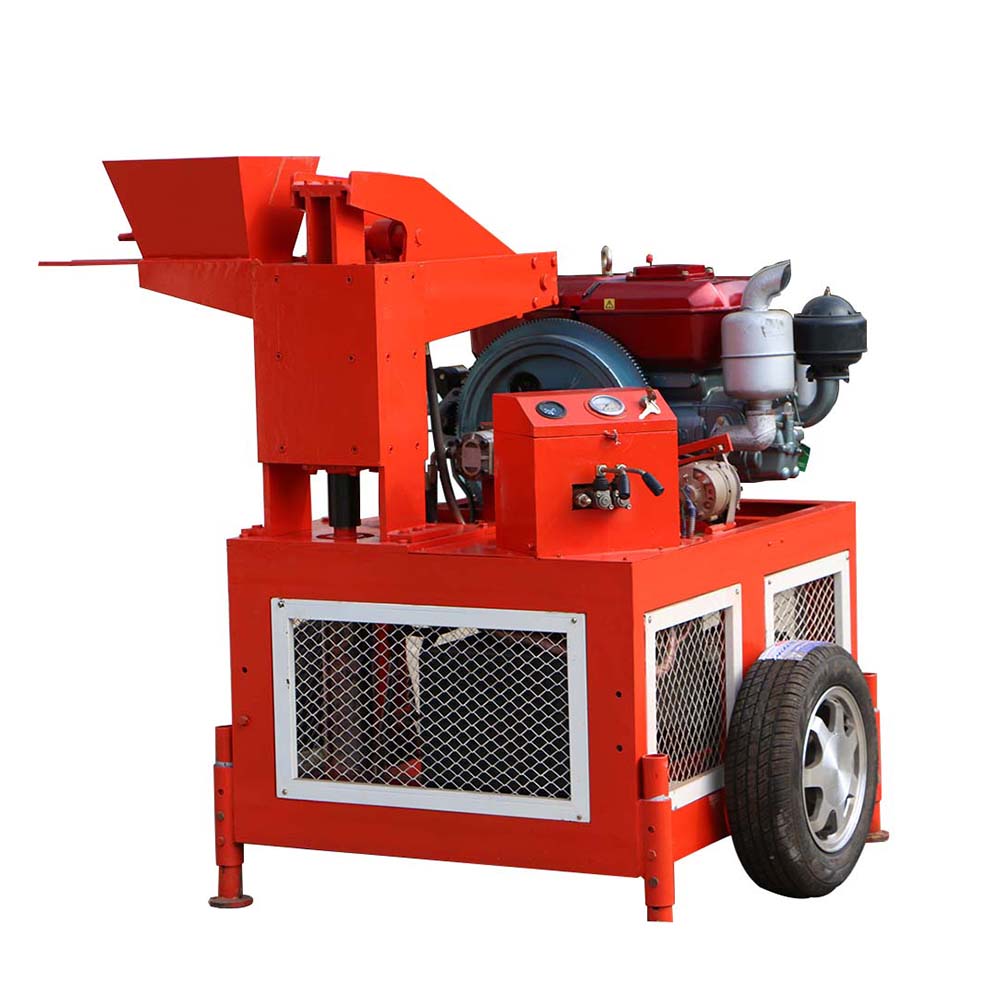

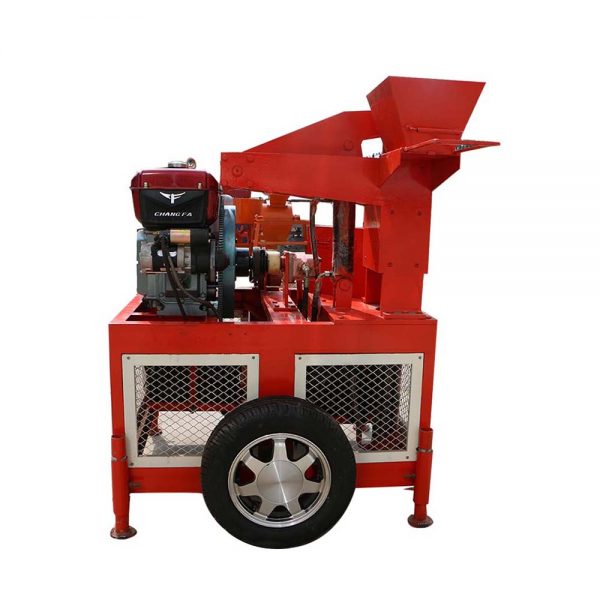

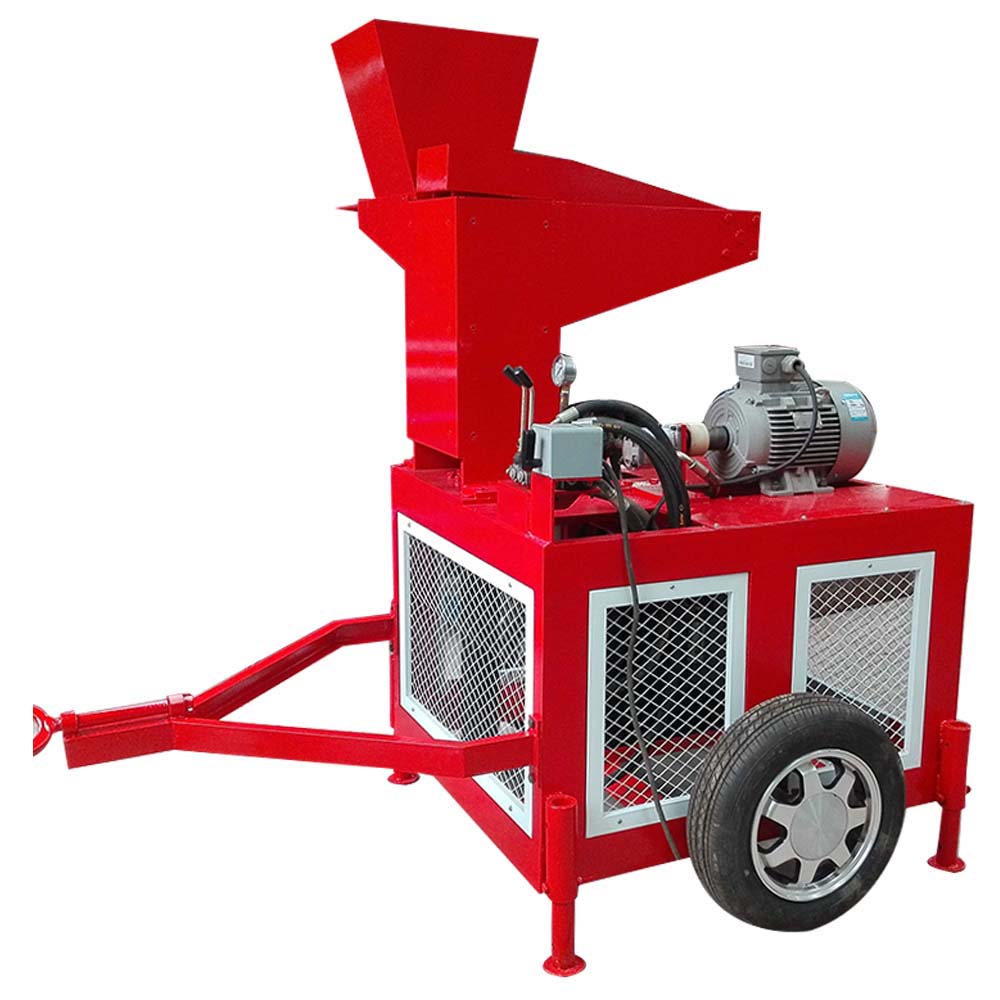

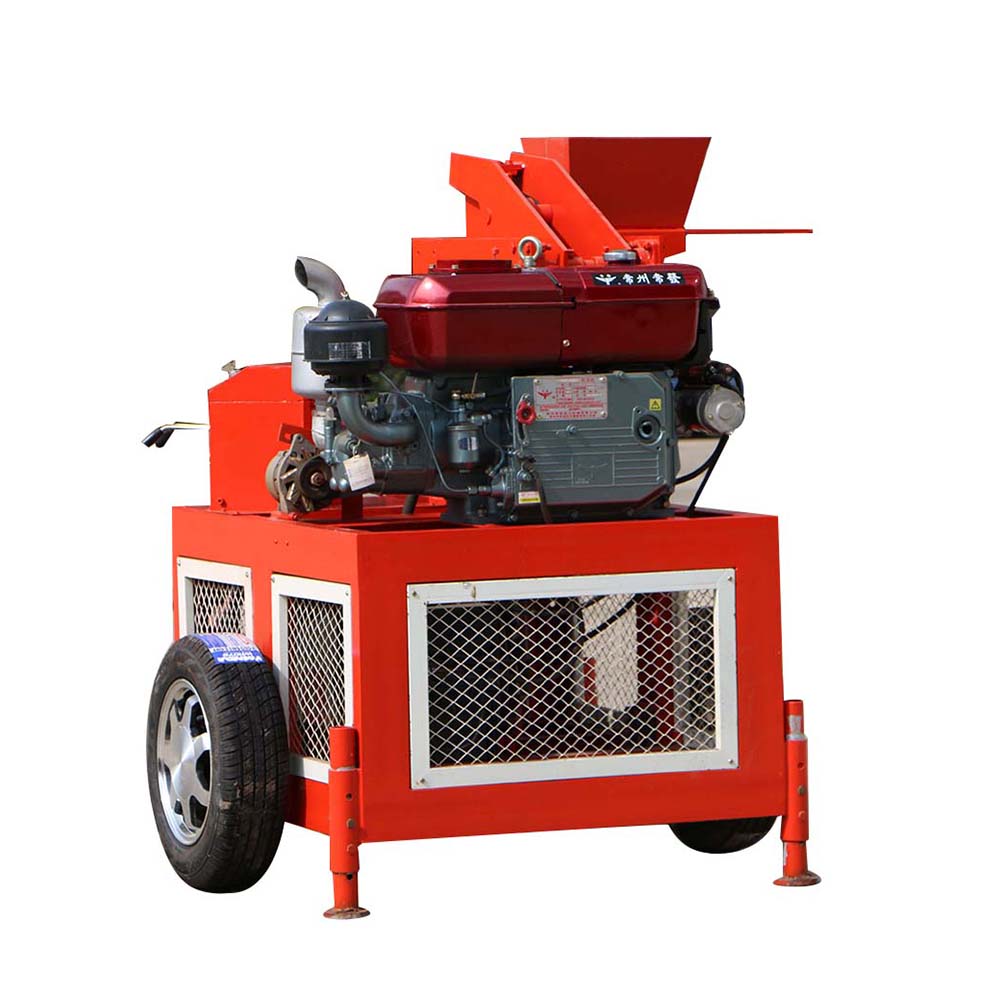

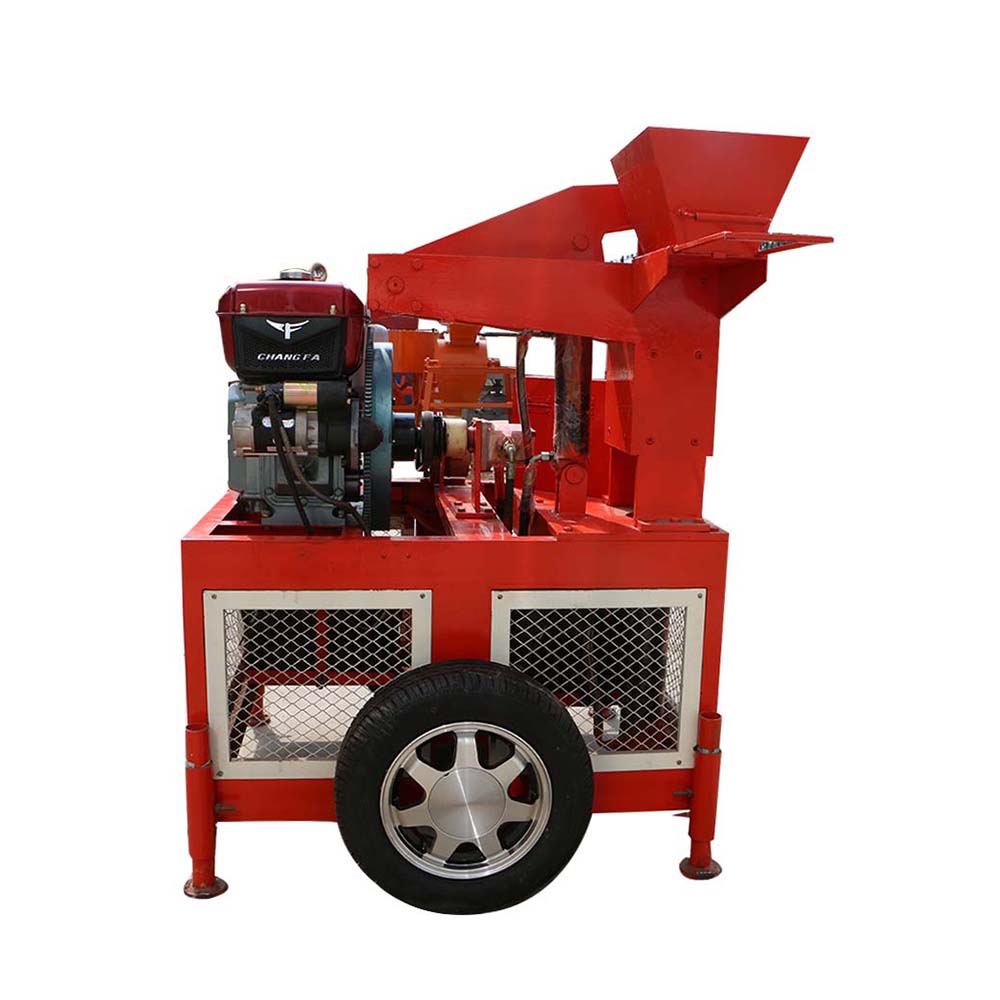

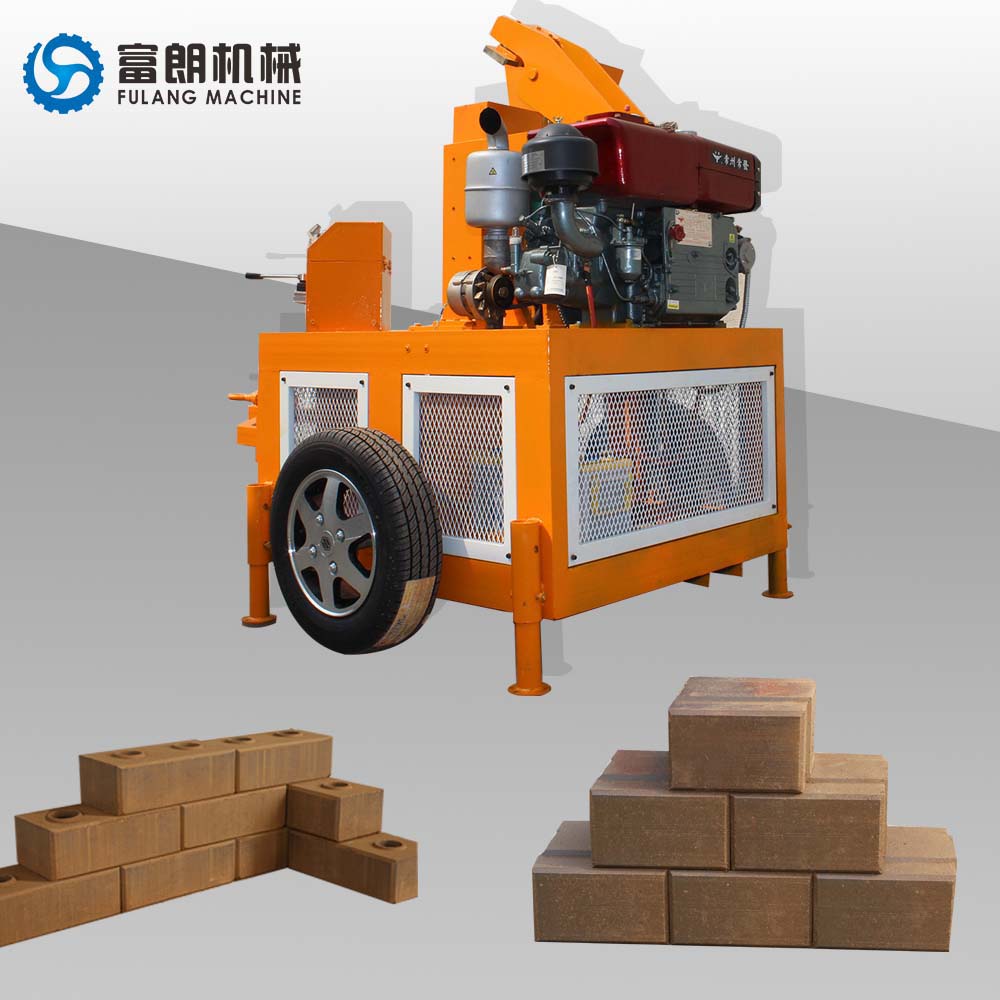

hydraform interlocking block making machines

FL1-20 is suitable for small brick manufacturing enterprise, it’s mobile and manual brick moulding machine. Welcome to contact us.

Send an inquiry

    Description

     Main advantage of 1-20 mobile brick machine

    1. Use clay or earth as material, to ensure low cost and competitive brick prices.
    2. Hydraulic is as high as 16MPa, making strong bricks.
    3. Be equipped with mobile tyres, more convenient to use.
    4. Hand-held motor model, diesel engine, suitable for power shortage area.
    5. You can choose diesel or motor according to your condition.
    6. For small size projects (1500~2000pcs/day).
     Brick samples
     Main technical parameters

    Overall size 1250*1250*1500mm
    Shaping cycle 11-15s
    Motor power 12.13KW/15Hp
    Pressure 16Mpa
    Piece/Mould 1Pcs/Mould
    Total weight 650kgs
    Capacity 1920-2600Pcs/8Hr

     Our company

    We are the supplier and manufacturer, specialize in block brick machinery for more than 19 years. Our main products are automatic burn free brick machine , concrete block machine production line, using Germany technology, German Simens motor, PLC system.
