small mobile concrete block making machine

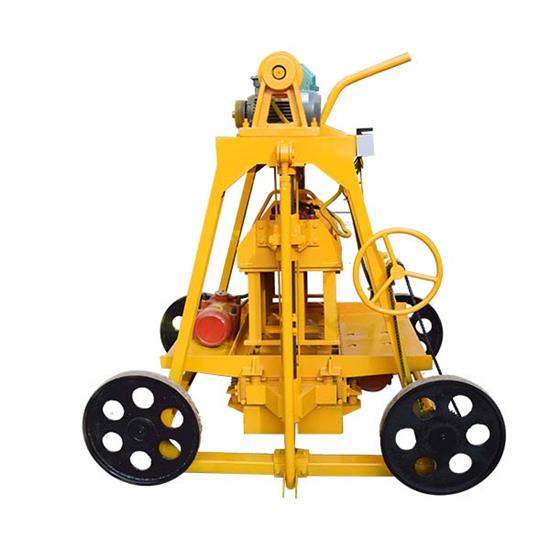

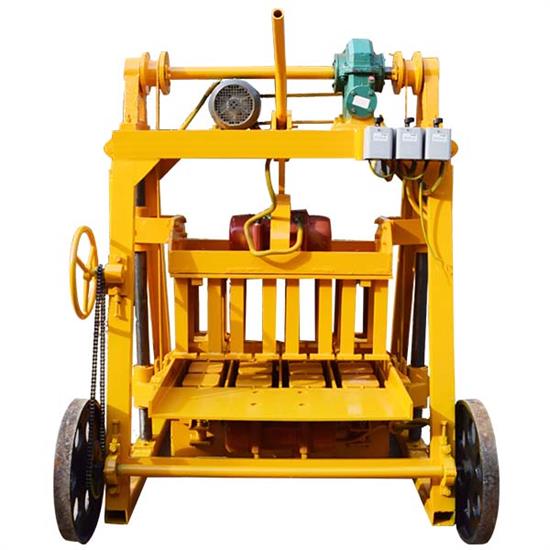

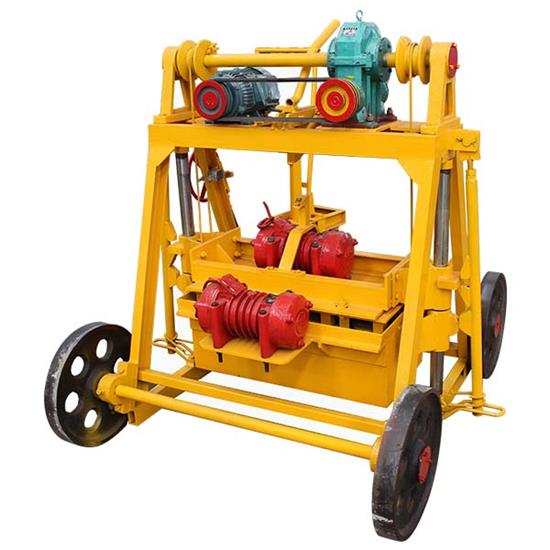

QTF40-3B is one manual brick making machine. As concrete hollow block making machine suppliers, we can provide many kinds of manual operated block making machine.

Send an inquiry

    Description

     Main advantage of this machine
    1. The mould uses precise wire cutting technology to reduce error and carburizing heat treatment technology to prolong its service life.

    1. QTF40-3B handbrick making machineusing vibration molding technology to make bricks, so the bricks have  better quality, larger density and higher strength.
    2. The machine is easy to operate, and it not need pallet ,so you can move it to wherever you want.

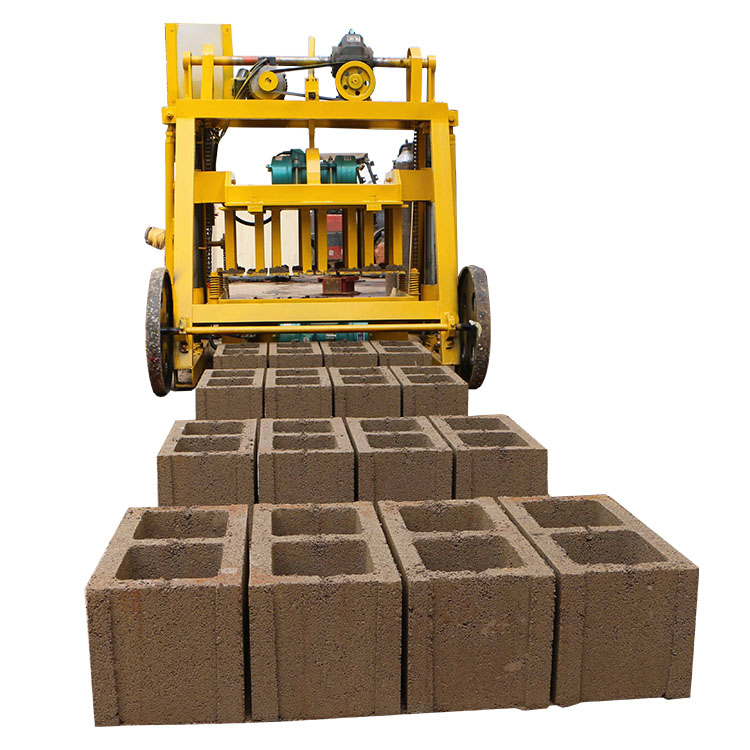

    3. Thebrick making machinecan produce many kinds of hollow blocks and solid blocks just by changing the moulds. We can designe the shape and size of mould according to customer requirements.
    4. The production capacity is 3000 pcs/8Hr.

      Technical Parameter and Production Capacity

    Dimension 1350x1300x1650mm Weight 1100Kgs
    Shaping cycle 45s Vibration force 30KN
    Machine power 5.2KW Mixer model JQ350
    Capacity 3000Pcs Labor required 2-3
    Pallet No need Voltage Customerized

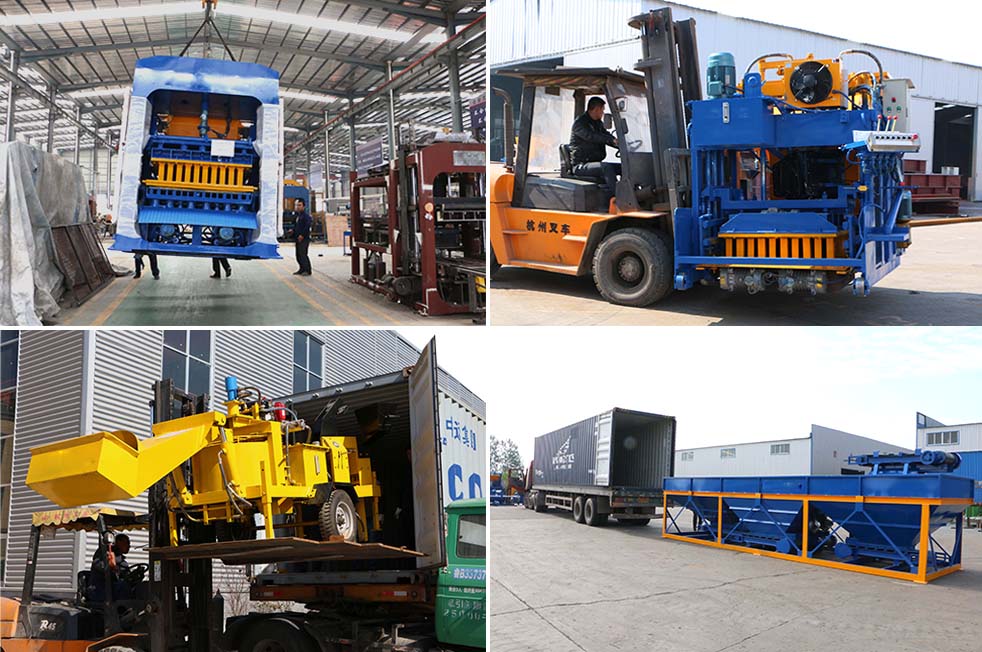

     Packing and Delivery
