Semi Automatic Block Making Machine

Semi Automatic Block Making Machine
Main advantage of this machine

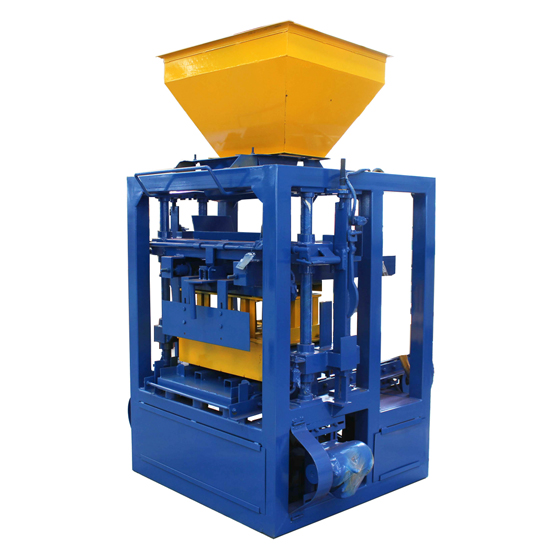

1.QTF4-24 is a semi automatic concrete brick machine, and it can produce various different hollow blocks, solid blocks and pavers by changing its mould.

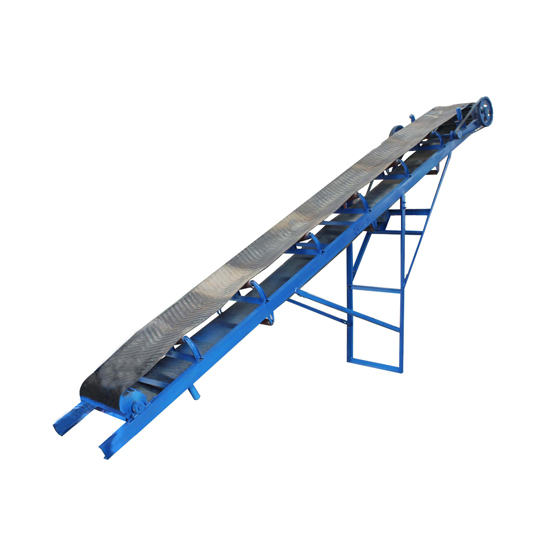

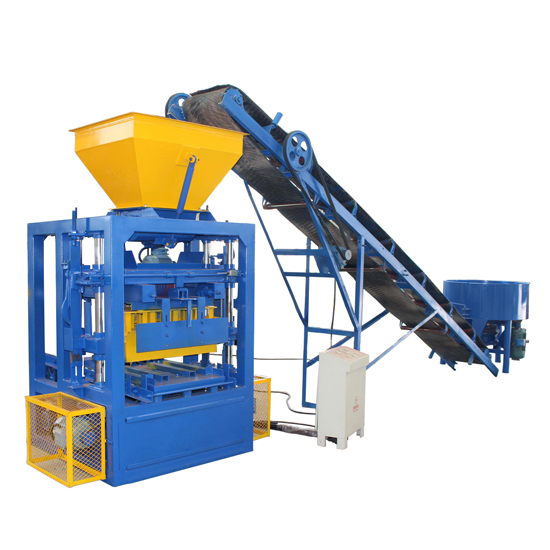

2.The whole production line includes the host machine, block mould, control box, conveyor belt, mixer, block trolley, spare parts and tools.
3.The product raw materials of QTF4-24 may be crushed stone, sand, cement, dust, coal fly ash, cinder, concrete, slag, gangue, gravel, perlite and other industrial wastes.
4.Vibrating moulding technology is adopted by QTF4-24 block machine, so the blocks produced are of good quality, large density and high strength.
5.Precise line cutting technology and carburizing treatment technology to prolong the service life of mould and increase the precision of the blocks.

Technical Parameter and Production Capacity

Technical Parameter
Dimension 2060x1730x2580mm Vibration force 35KN
Shaping cycle 24s Mould treatment Heat treatment

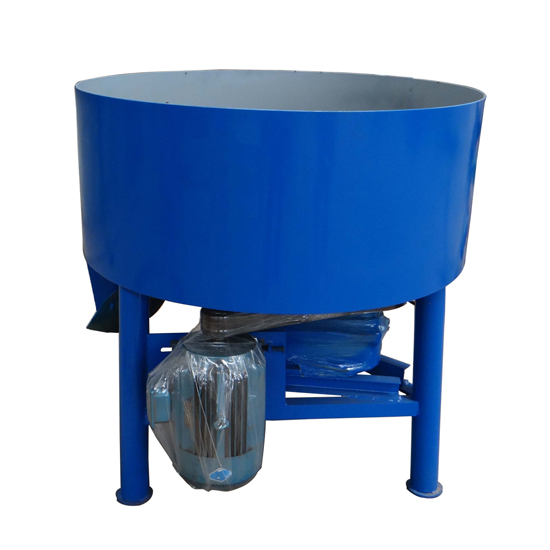

Host machine power 13.45KW Mixer JQ350
Weight 3000Kgs Pallet size 850x450x25mm
Rated voltage Customerized Applied Products Hollow blocks,soild blocks








Production Capacity
Size(LxWxH) Reference Picture Pc/Mould Pcs/8 Hour
400x100x200mm

7 5040
400x150x200mm

5 3600
230x110x70mm

14 10080











Customer Visiting
With broad domestic and internationl sales network and good after-sales servie, FULANG brand machines sell well in whole national wide and exported to more than 100 countries and regions all over the world, gained our reputation in both domestic and international market. Sincerely welcome you to visit our company and investigate on site. Looking forward to establish long-term trade relations of cooperation. Mutual reciprocity and mutual benefit is our goal, and together we will build a brighter future!
