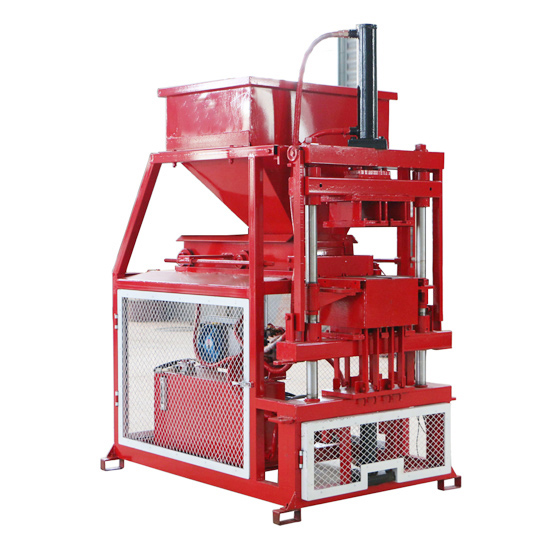

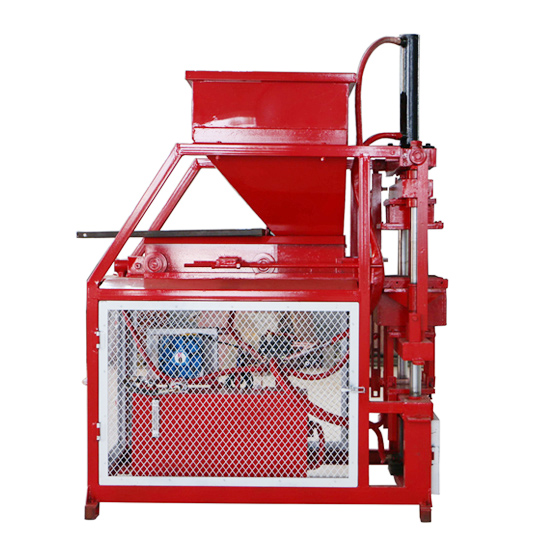

Soil Interlocking Block Machine

Soil Interlocking Block Machine
Main advantage of this machine

1.  FL2-10 is an interlocking brick making machine.It can produce 2pcs at a time and 5760pcs/8h
2.  This automatic clay brick making machine can produce different interlocking bricks by changing moulds.Also we can customize brick moulds according to your requirements.
3. The hydraulic press of this machine can reach 40MPa,so the bricks produced are very firm and durable.
4. Our molds are made of manganese steel and adopt precise line cutting  and carburizing treatment technology to prolong mould service life.


Technical Parameter and Production Capacity

Technical Parameters
Dimension  1850*900*2050mm Piece/mould 2Pcs/mould
Shaping cycle  7-10s  Weight 1300kgs
Motor power  7.5KW/15Hp Capacity 5760Pcs/8 Hr
Pressure 40MPa Pallet No need
Rated voltage Adapt to local voltage Capacity Interlocking bricks









Theoretical Production Capacity

Size(L*W*H)

Reference Pic
Pcs/Mold
 Pcs/8h
300*150*100mm  2 5760
 300*150*100mm    2 5760
 150*150*100mm    4  11520
















Brick mould samples
