Hollow Block Making Machine,Concrete Block Machine,Concrete Paver Machine

cement pavers making machine

Semi automatic fly ash bricks machine
Main advantage of this machine

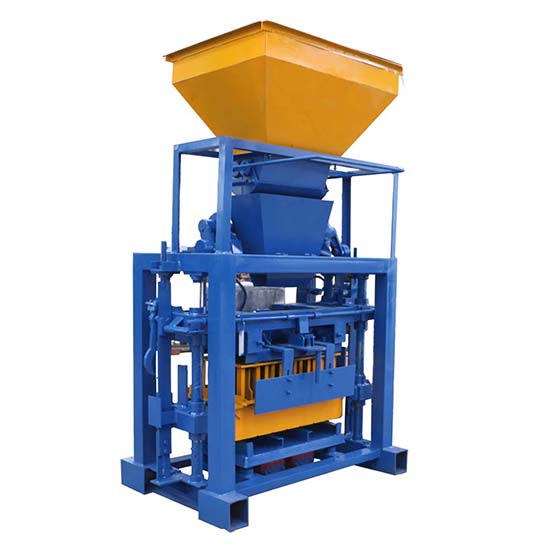

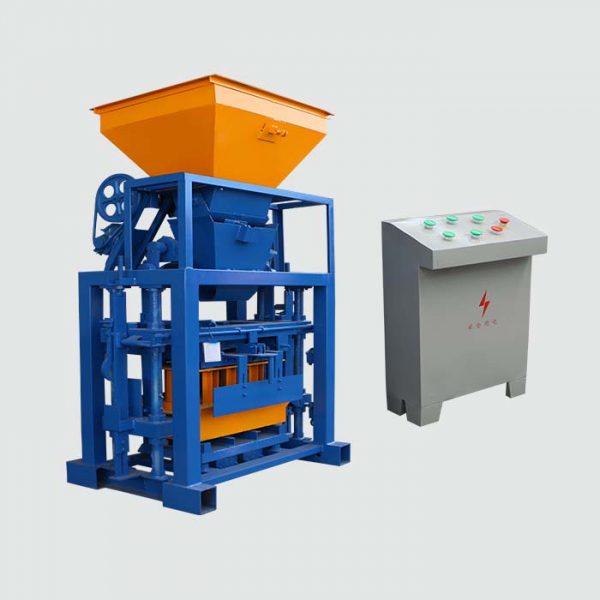

1. Funtion: QTF40-1 manual brick making machine can produce various hollow/solid blocks and pavers by changing moulds
2. Production efficiency: For size 400*150*200, this fly ash block making machine can achieve 2880-3600 pieces brick per shift (8 hours) , so the production efficiency is very high among manual bricks machines types of brick.

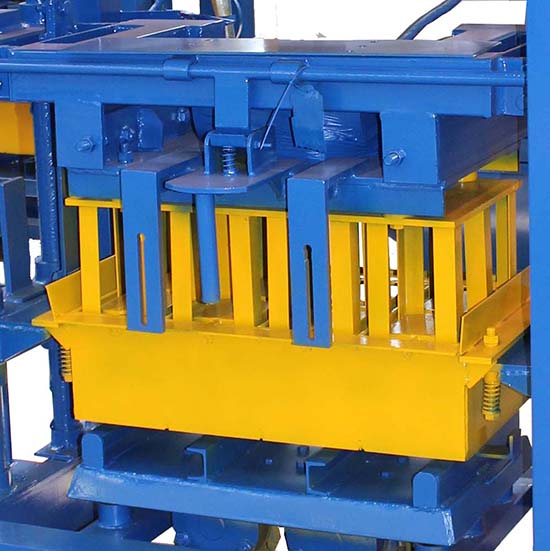

3. High quality mould: Our moulds adopt precise line cutting technology and carburizing treatment technology to prolong mold life and increase block precision.
4. High quality material: This model is made of high-performance steel Q345 selected according to international CE standard. Thus it has advantages in high toughness, wear and tear resisting and high strength.
5. Operation: Equipped with PLC control system, it's simple to operate YLF40-2 with labor saving.
6. QTF40-1 is a nice choice to start a small and medium-sized enterprise and individuals.

Technical Parameter and Production Capacity

Technical Parameters
Dimension of host machine 1350*1460*1800mm Pallet size 850x450x25mm
Moulding period 30s Total weight 2500kg
Host Machine Power 8.8Kw Voltage Adjustable
Total Machine Power 17.4Kw Products Hollow block, solid block
Vibration force 30KN Raw material Crushed stone, sand, cement, dust, fly ash, cinder etc.

Theoretical Production Capacity
Size(LxWxH) Reference pic  Pcs/Mould  Pcs/Shift
400x100x200mm 7 4000-5040
400x150x200mm 5 2880-3600
200*100*60mm 14 8400

Customer Visiting
