Description
▶ Main advantage of this machine

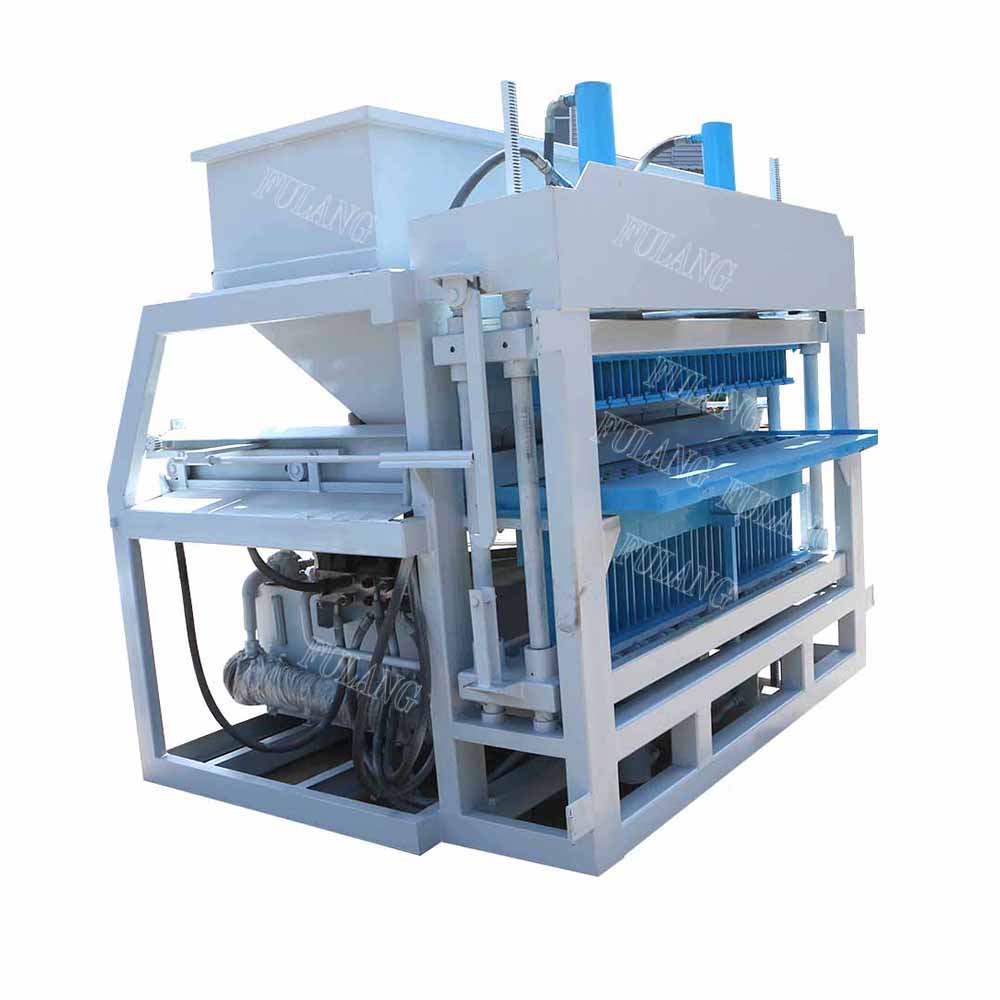

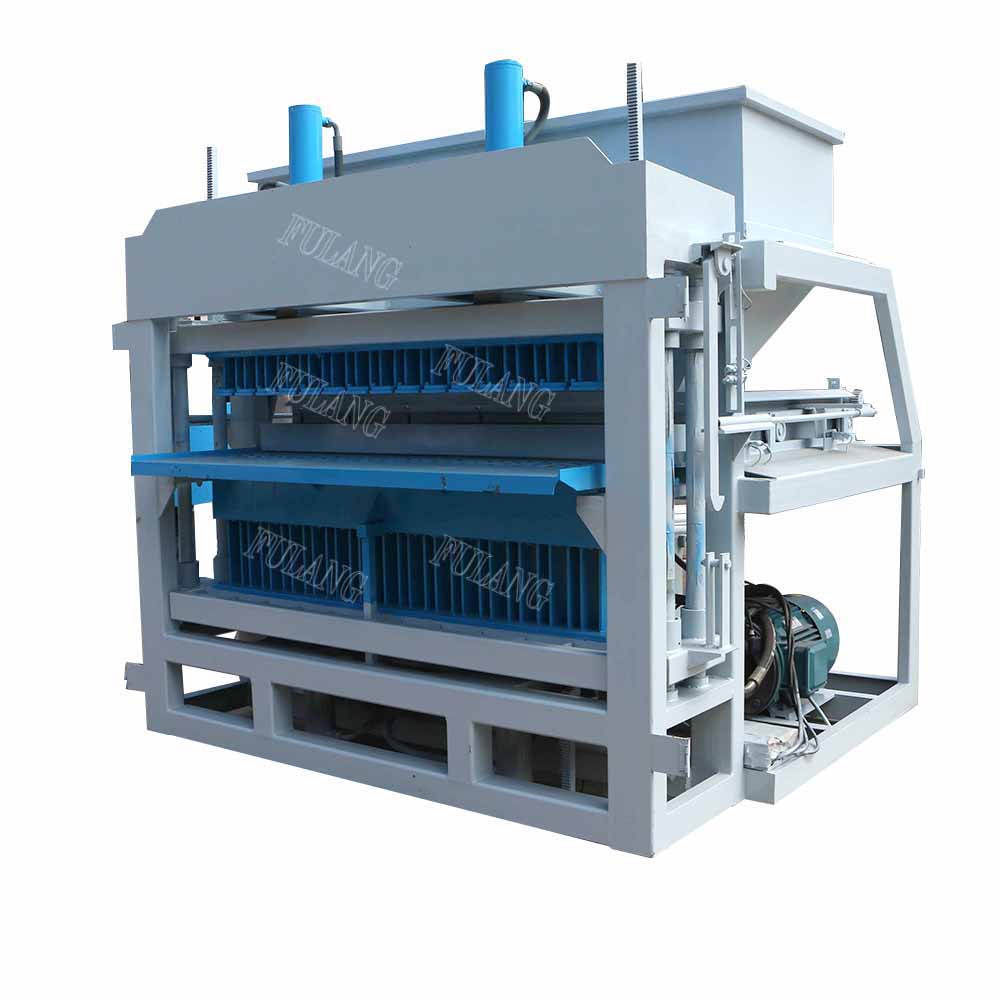

- Function: FL10-10 is fully automatic claybrick making machine with big capacity. This automatic compressed soil earth interlocking brick block machine can produce various interlocking bricks by changing moulds.
- Large capacity: Making 10 pieces bricks at one time, and shaping cycle only 8~10 seconds, so the daily capacity as high as 28800 pieces.
- Advanced technology: Hydraulic pressure technology is adopted by this machine, the pressure can be as high as 60Mpa, so the blocks produced are of good quality, large density and high strength.
- High quality mould: All mould use precise wire cutting and carburizing heat treatment to prolong its service life.The machine frame is made of special thick steel and using special welding techniques. The whole machine is strong and durable.
▶ Main technical parameters
| Dimension of host machine | 2400×2100×2200mm | Voltage | adjustable |
| Shaping cycle | 8-10s | Host machine power | 18.5KW |
| Hydraulic system pressure | 31.5MP | Weight of the electric motor | 165KG |
| Pieces/mould | 10 pc/mould | Raw material | soil , clay , earth , etc |

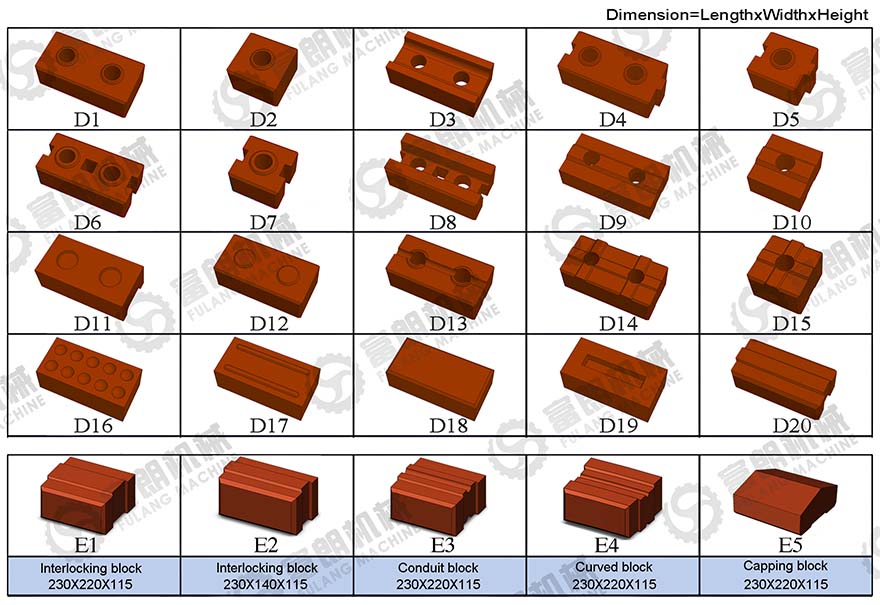

▶ Different shapes brick samples for your reference
The below brick shape is just for your reference, and we can design other brick moulds according to your special requirement.

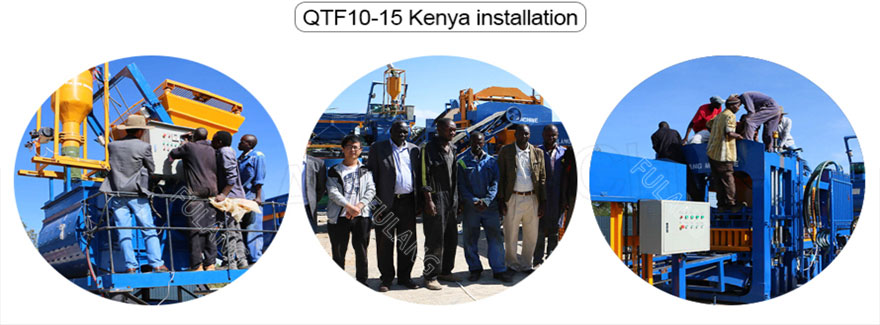

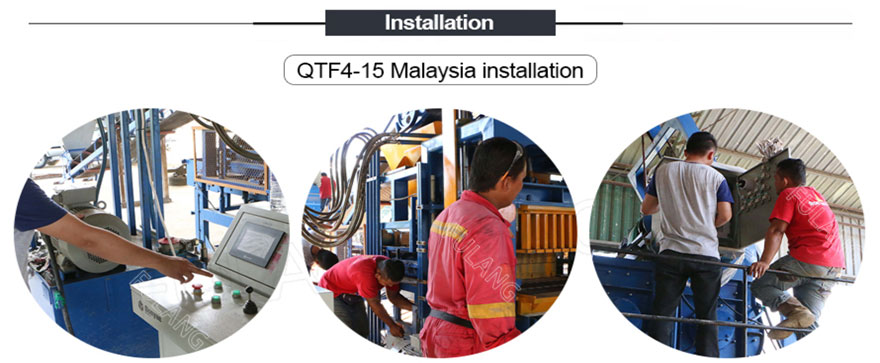

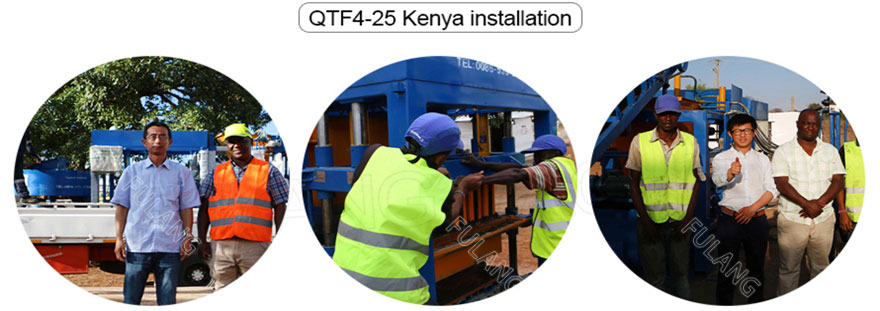

▶ Installation abroad
▶ Customer visiting
