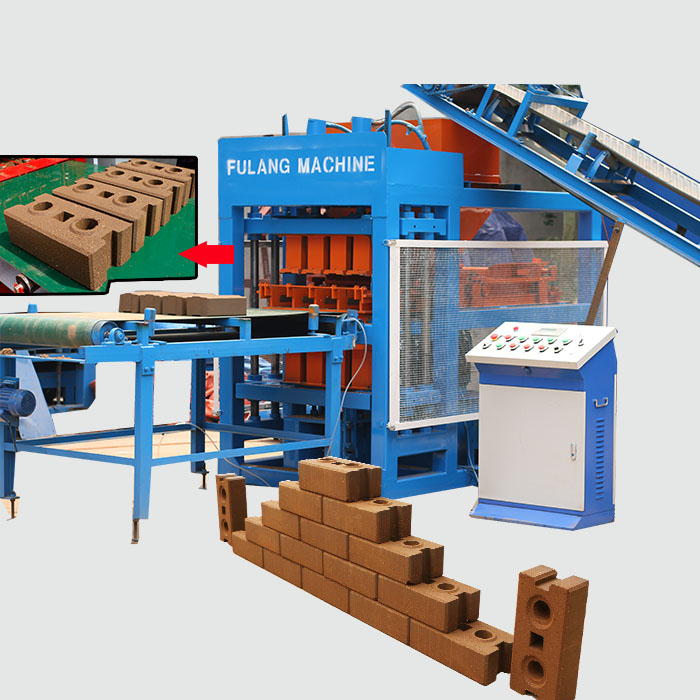

FL4-10 clay soil brick making machine

FL4-10 hot sale updated automatic interlocking rammed earth brick machine with big capacity and this stabilized soil hydraform brick block making machine sales for brick manufacturer

Send an inquiry

    Description

    clay soil brick making machine

    ▶ Main technical parameters

    Overall size 2200*1250*2200mm Shaping cycle 10s
    Power 15Kw Labors 2-4 workers (for whole production line)
    Hydraulic pressure 60 tons Voltage 380V/240V/440V or according to local voltage
    Engine electric engine Capacity 11520pcs/day
    Weight 1750kgs Material clay(soil sand) or clay mixer with 8~12% cement
    Mixer type JQ350 Pcs/mould 4 pcs one mould



    ▶ Brief introduction of FL4-10

    FL4-10 hot sale automatic interlocking rammed earth brick machine is an upgraded version of FL2-10 clay brick machine. Its production capacity is double FL2-10.

    1. FL4-10 automaticbrick machinecan produce all kinds of chain bricks by changing moulds.
    2. FL4-10 hydraulicbrick machineis fully automatic, forming cycle is within 10s, production capacity can reach 11520/8 h, high production efficiency, saving manpower.
    3. This machine adopts hydraulic forming technology, making the working condition ofbrick making machinemore stable and efficient. The bricks produced by this machine are of good quality, high density and high strength.
    4. Precision wire cutting and carburizing process are adopted to prolong the service life of dies.

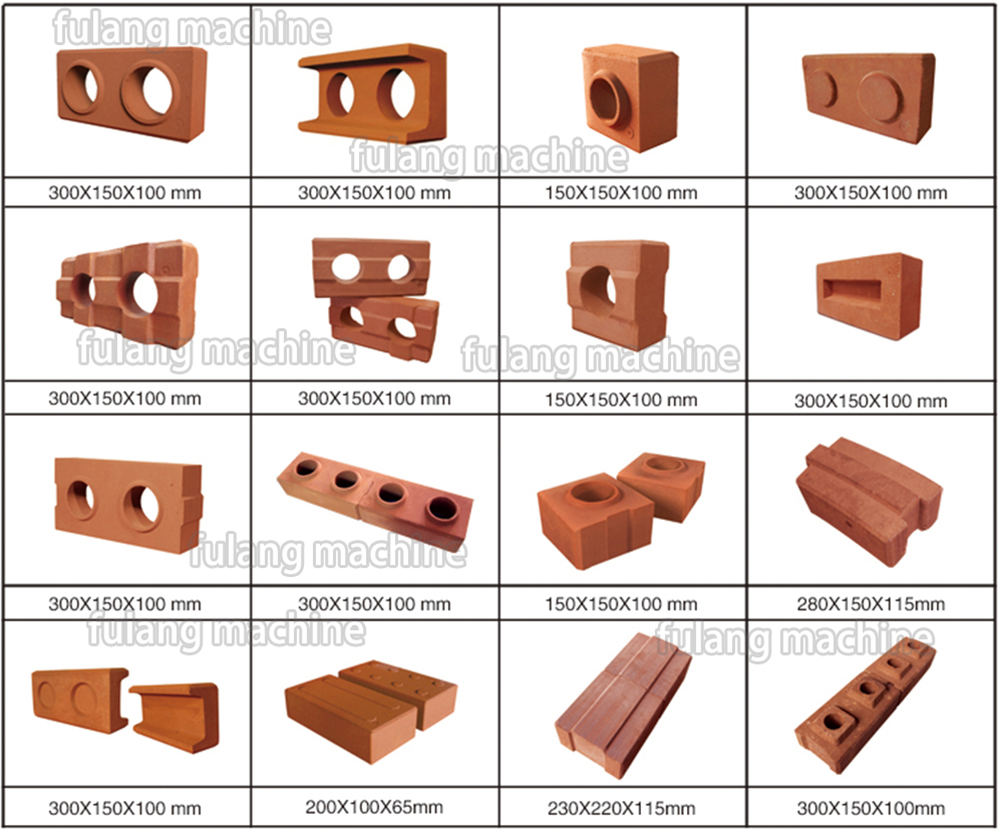

    ▶ Brick samples for your reference

    ▶ Customer visiting from all over the world
