Description

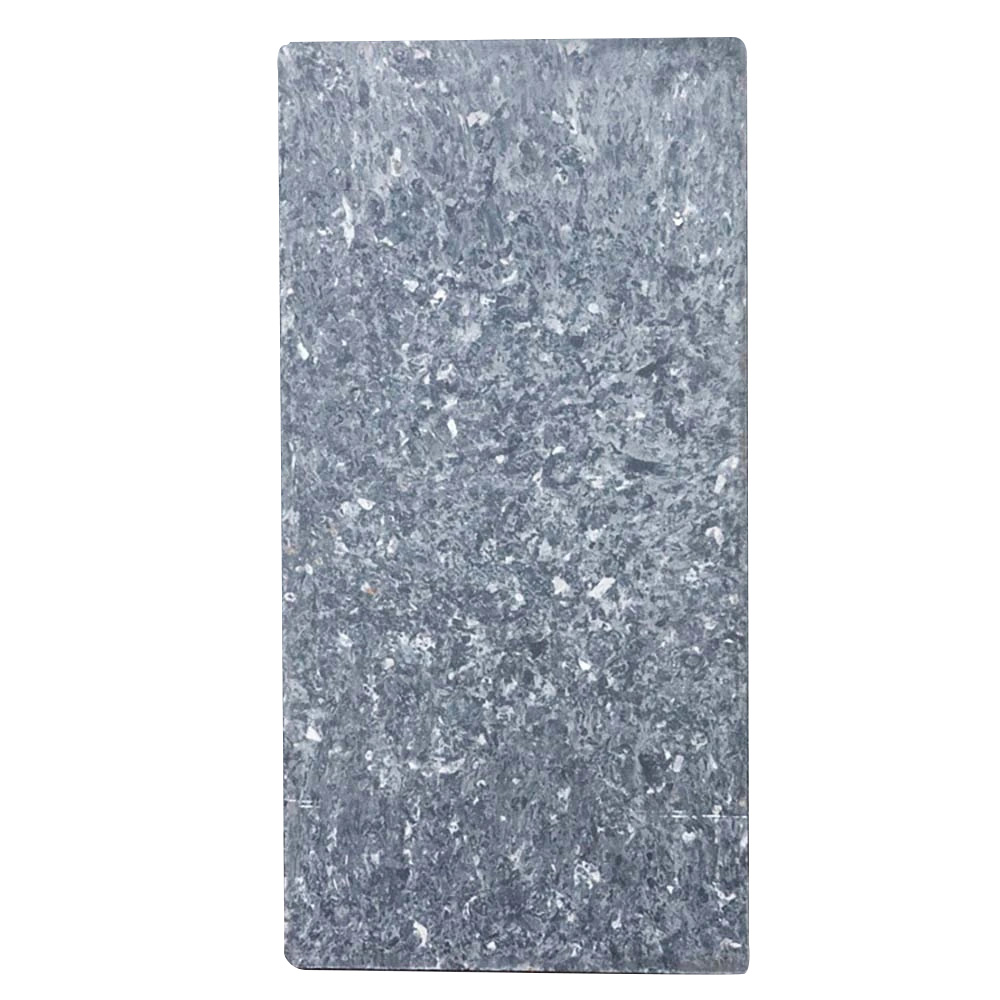

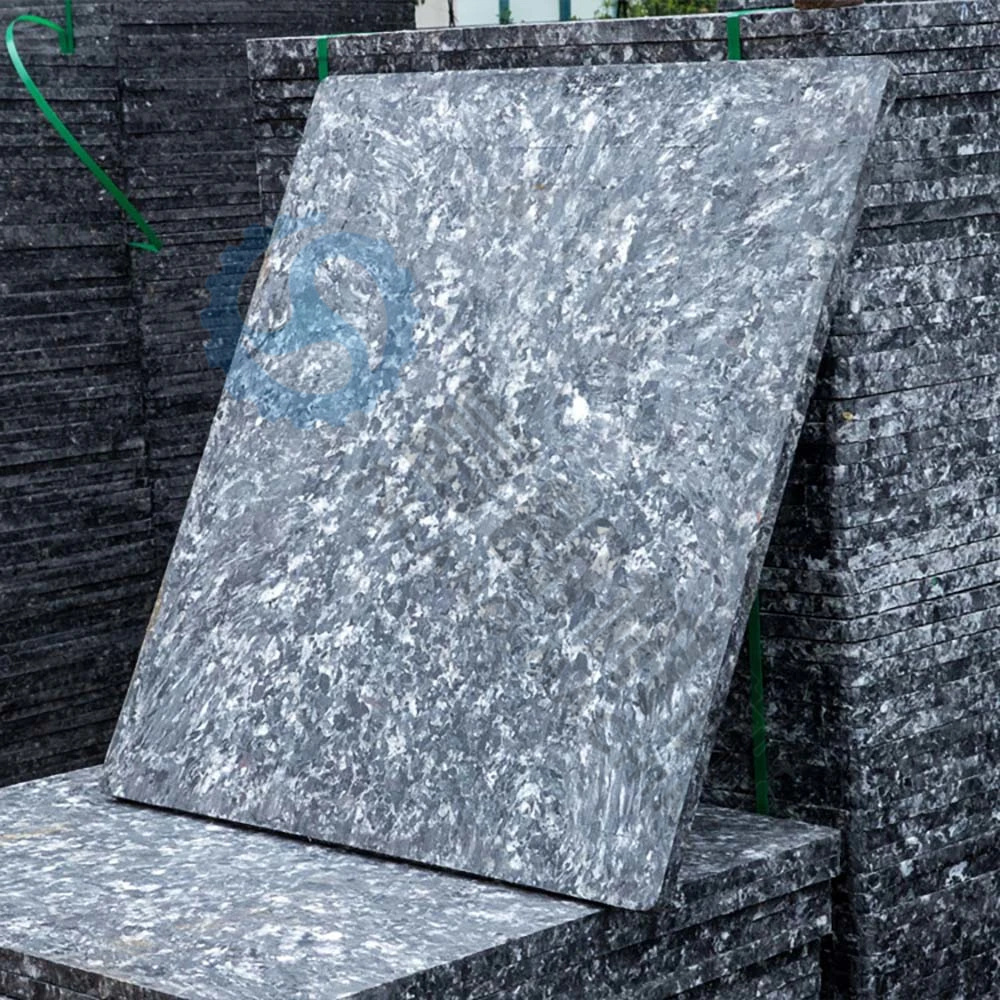

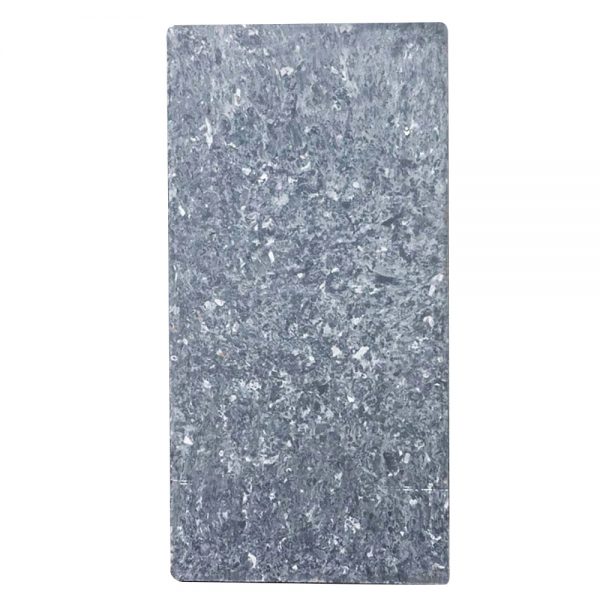

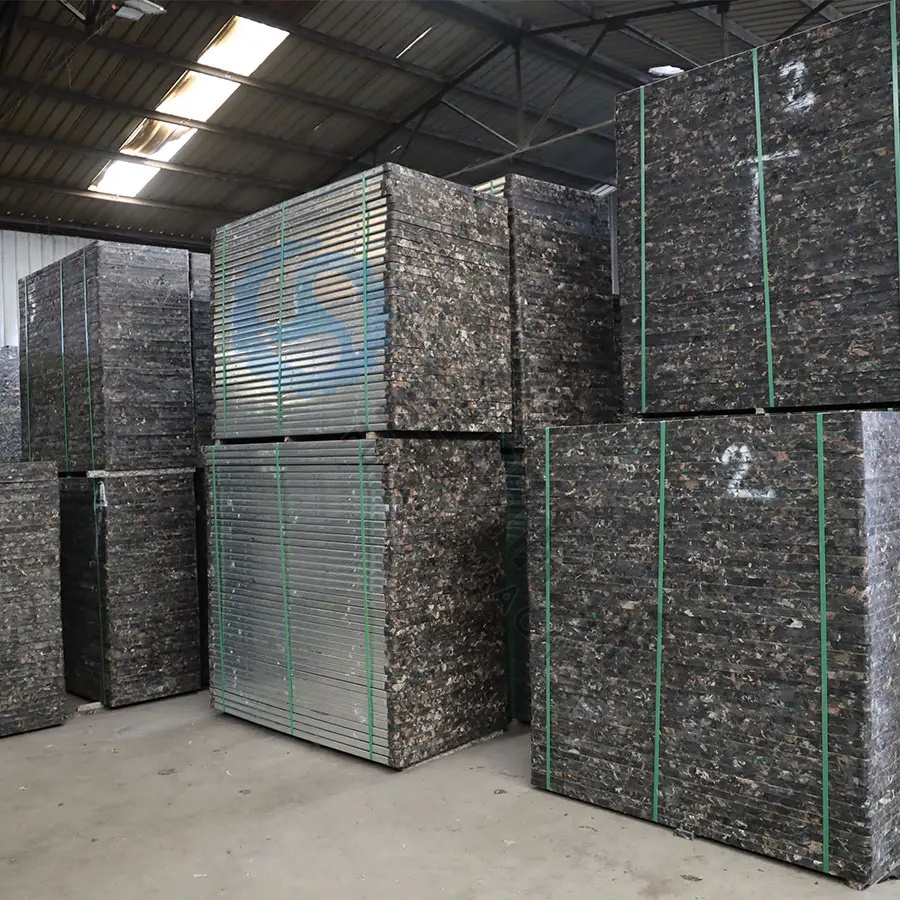

Gmt Glass Fibre Brick Block Pallets

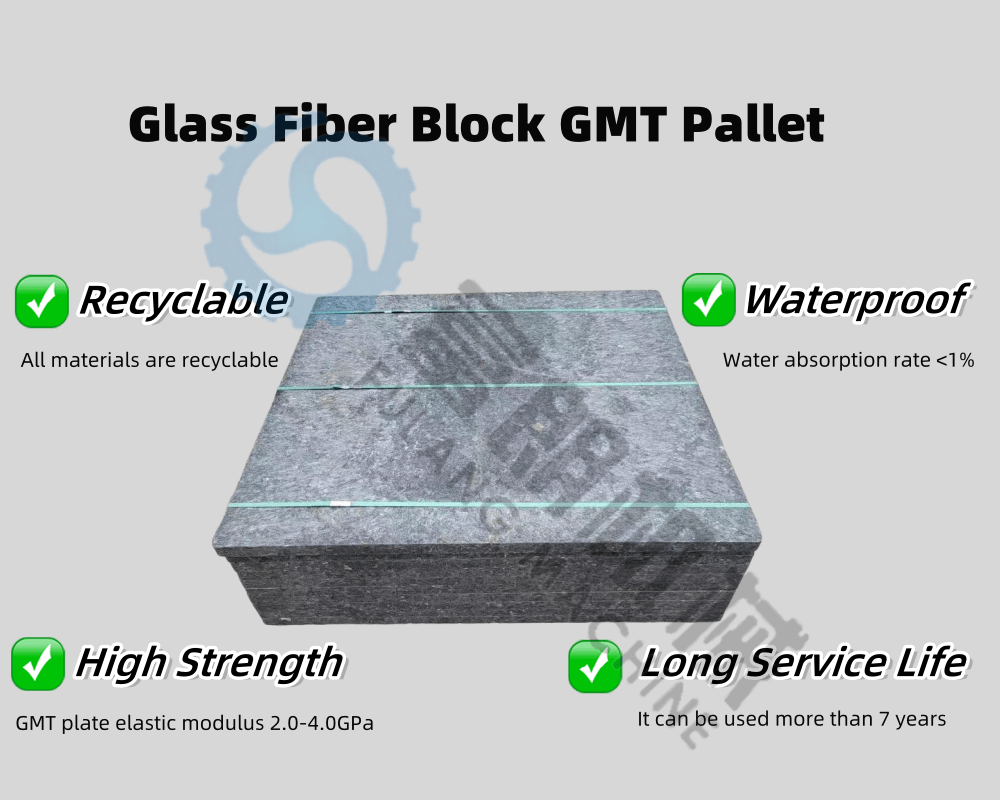

▶ Main advantage of this GMT Pallets GMT(Glass Mat reinforced Thermoplastics)
1.High Impact Resistant
Impact strength of PVC plate is less than or equal to 15KJ/m2, GMT pallet is greater than or equal to 30KJ/m2, comparing the impact strength under the same conditions. Drop hammer experiment in the same height shows that: when GMT pallet slightly cracked, PVC plate has been breakdown by drop hammer. ( Below is the laboratory drop tester: )
2.Good Rigidity
GMT plate elastic modulus 2.0-4.0GPa, PVC sheets elastic modulus 2.0-2.9GPa.
3.Not Easily Deformed
4.Waterproof
Water absorption rate <1%
5.Wear-resisting
Surface hardness shore: 76D. 100 minutes vibration with materials and pressure. Brick machine screw off, pallet is not destructed,surface wear is about 0.5mm.
6.Anti-high And Low Temperature
Being used at min 20 degrees, GMT pallet won’t deform or crack. GMT pallet is able to withstand high temperature of 60-90ºC, won’t easily deform, and suitable for steam curing, but PVC plate is easy to deform at high temperature of 60 degree.
7.Long Service Life
Theoretically, it can be used more than 7 years.
8.Light weight
▶ Technical Parameters
|
NO.
|
Item
|
Specification
|
|
1
|
Pallet size
|
customized as client requirement
|
|
2
|
Impact Strength
|
> 30 KJ/m²
|
|
3
|
Temperature tolerance
|
60-90 degree
|
|
4
|
Water Absorption
|
Less than 0.5%
|
|
5
|
Theoretical life
|
8~10 years
|
|
6
|
Raw Material |
glass fiber
|
|
7
|
GMT Plate elastic modulus
|
2.0-4.0GPa
|
|
8
|
Density | 1200kg/M3 |

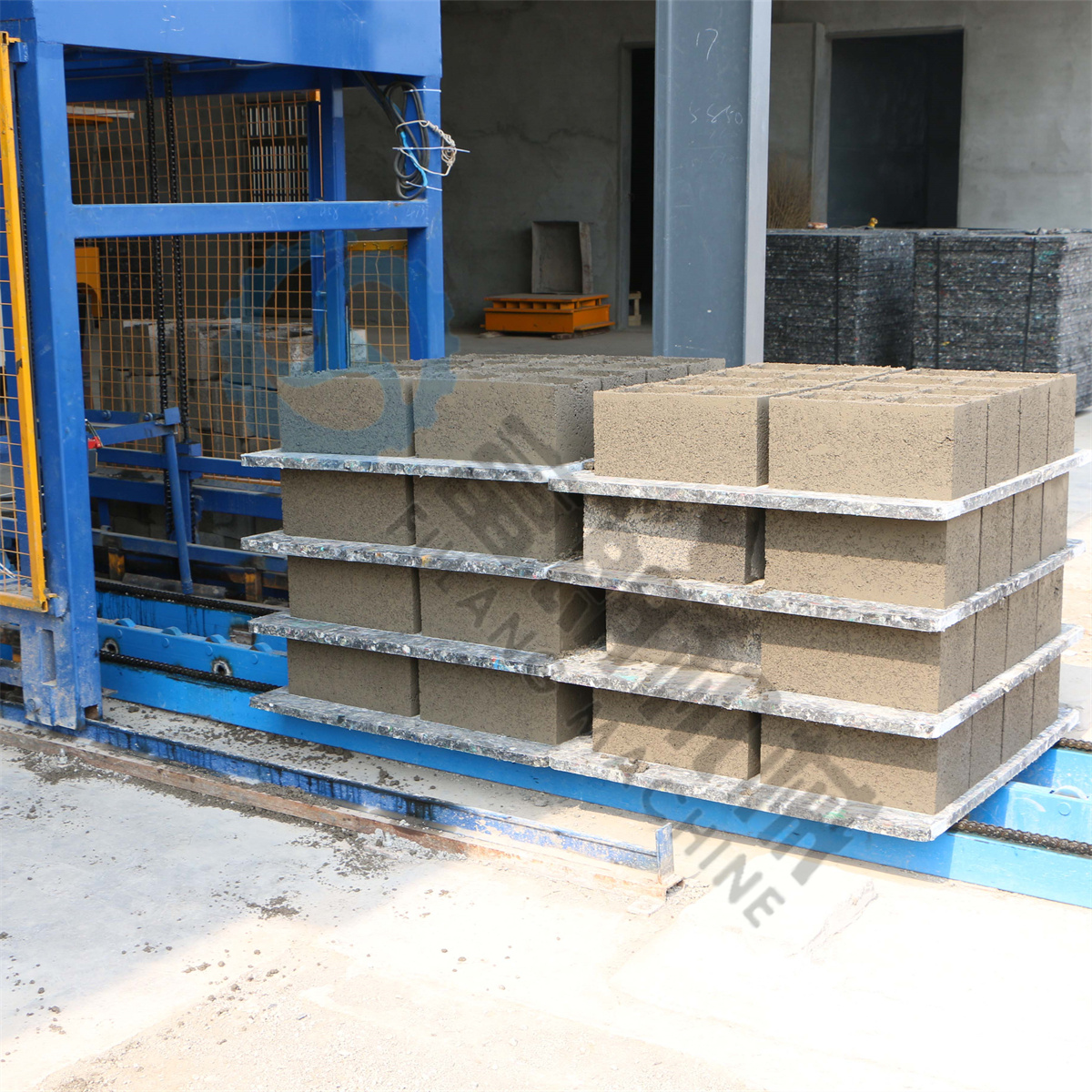

▶ Scenes to be used
