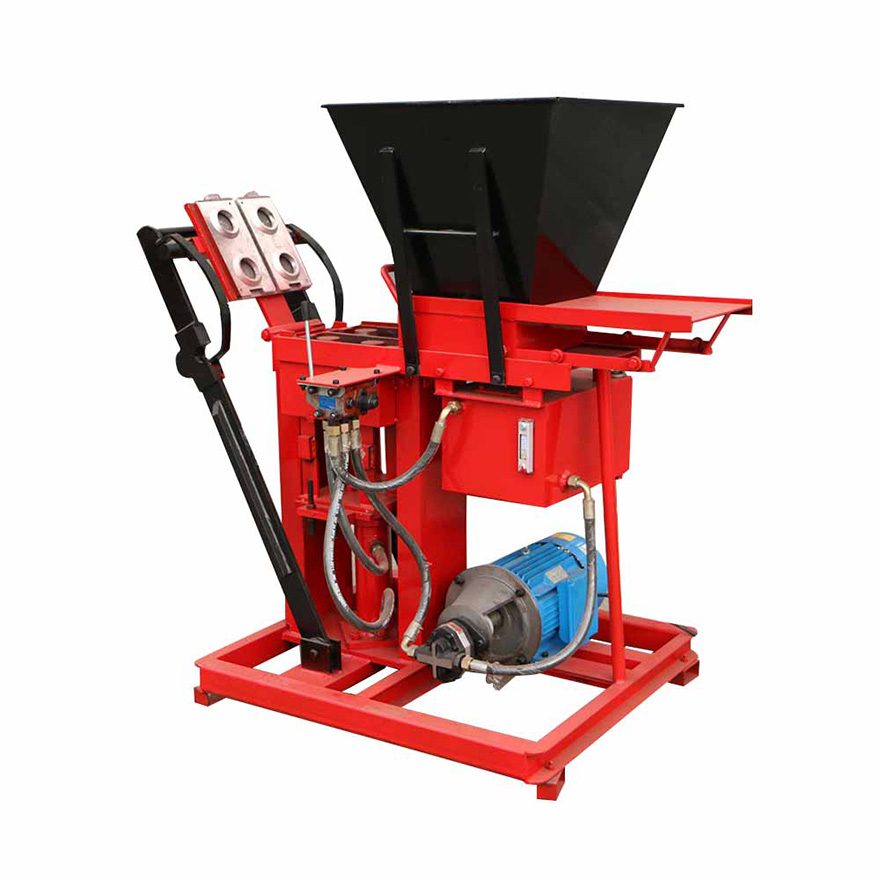

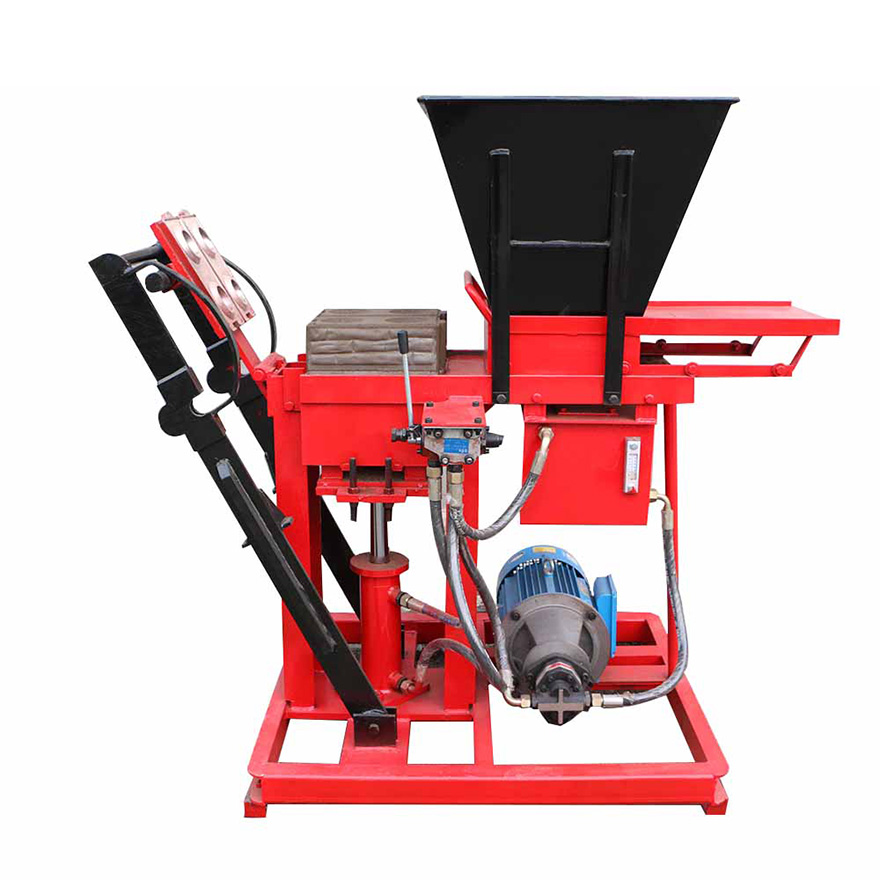

hand operated clay brick making machine

FL2-25A is an small manual hydraulic clay brick moulding machine, we also provide many other kinds of clay brick making machine video for your choice .

Send an inquiry

    Description

    ▶ Main advantage of this soil interlocking brick machine

    1.This small scale brick making machine is powered by electric motor engine, and the diesel engine is also available.
    2.This hand operated brick making machine has a simple operating system, workers can operate the machine by simple training.

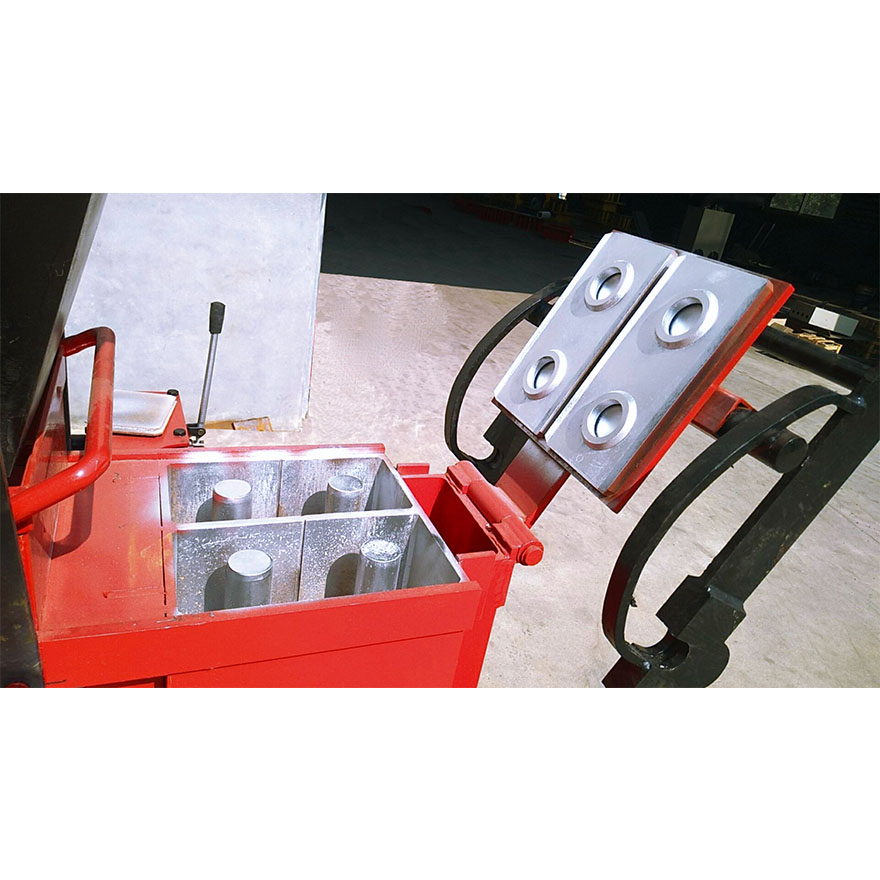

    3.The mould uses precise wire cutting technology and carburizing heat treatment technology, so the mold life is longer than common mold.
    4.The clay brick moulding machine can produce different clay brick size block by changing mould.
    5.This machine adopts hydraulic pressure system to shape the brick, so bricks produced with high quality.

    ▶ Technical Parameter and Production Capacity

    Host machine dimension 1400x800x1605mm Weight 500Kg
    Shaping time 10-15s Pressure 16Mpa
    Motor power 25kw Power Electric motor
    Block size  Customized Piece/Mould 2
    Production capacity example
    300*150*100mm: 5200pieces/8hours
     250*100*80mm: 5200pieces/8hours
     150*150*100mm: 10400pieces/8hours

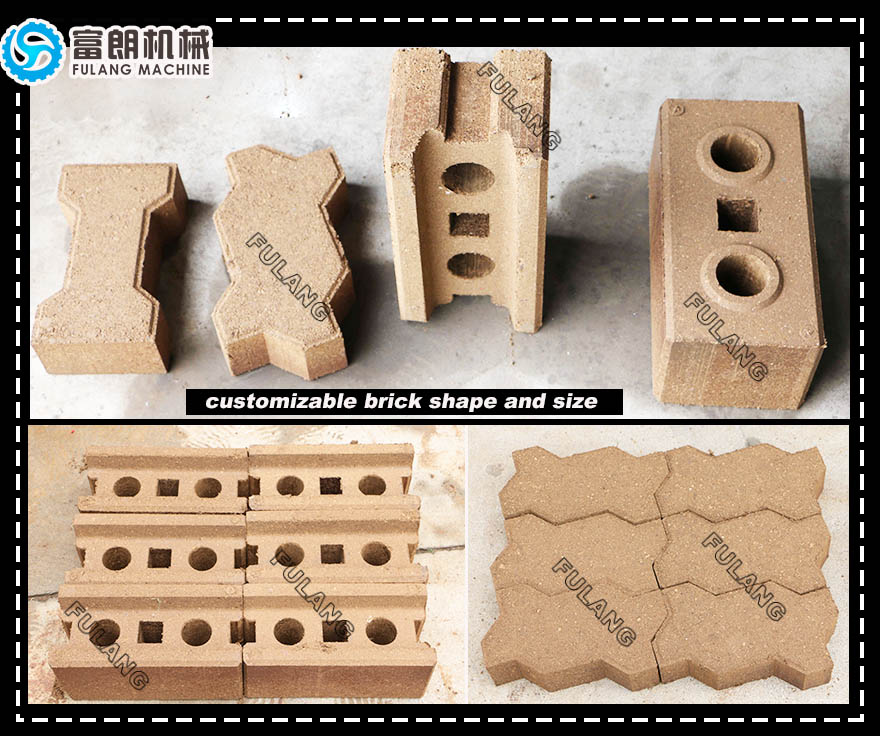

     Brick samples

    ▶ Customer visiting
